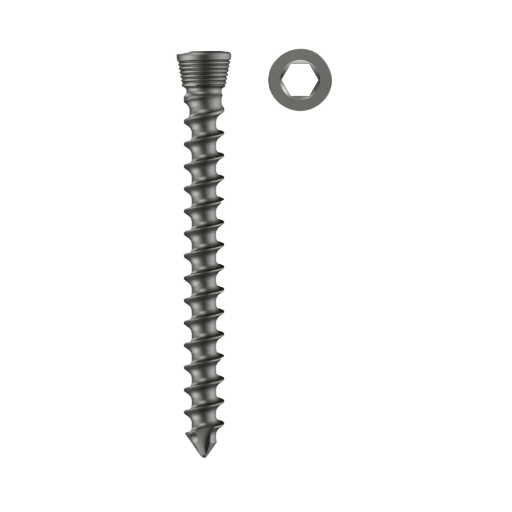

5 mm Locking Cancellous Screw
5 mm Locking Cancellous Screw uses
5 mm Locking Cancellous Screw is intended for fracture fixation of large bones and large bone fragments.
This Screw is also indicated for:
Femoral neck fractures
Slipped capital femoral epiphyses
Tibial plateau fractures
Ankle arthrodeses
Pediatric femoral neck fractures
Intercondylar femur fractures
Sacroiliac joint disruptions
Subtalar arthrodeses
5 mm Locking Cancellous Screw available lengths are 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm, 55mm, 60mm, 65mm, 70mm, 75mm, 80mm, 85mm, 90mm, 95mm, 100mm, 105mm, 110mm, 115mm and 120mm.
Screws available thread lengths are 16 mm thread, 32 mm thread and Fully threaded.
Screw is made from pure Titanium and SS 316L.
Low-profile head helps reduce possibility of soft tissue irritation .
Reverse-cutting flutes assist in screw removal.
Choice of thread lengths offers best fit of threads into far bone fragment, for greater interfragmentary compression.
Cancellous thread profile uses deep cutting threads with a large pitch to increase resistance to pullout. The large pitch also accelerates screw insertion and removal.
Self-drilling, self-tapping screw tip facilitates screw insertion by eliminating the need for predrilling and tapping in most cases.
Any additional length sizes of this screw will be made on demand.
This is Self Tapping Screw. Self Tapping Screws cuts its own thread while being driven into the bone. It makes a small hole while entering the bone which creates a tight friction fit between the threads. This helps fight vibration loosening and allows the parts to be taken apart if needed..
Instruments are available for this screw such as Bone Taps, Combined Drill & Tap Sleeve, Counter Sink, Depth Gauge, Drill Bits, Drill Guide, Drill Sleeve, Hollow Mill Screw Removal, Reverse Measuring Device, Screw Drivers and Screw Holding Forceps etc.
