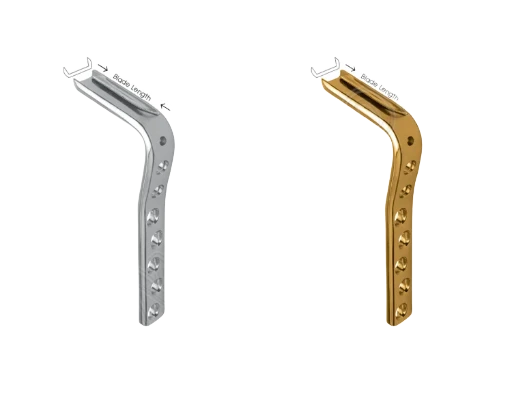

Angled Blade Plate 130 Degree

High-quality metallic plates for orthopedic surgery

Plates are intended for fractures and revisions of the proximal third of the femur in skeletally mature patients.

Plates are made of 316L stainless steel and Titanium.
The Plate is available in 60 mm, 70 mm, 80 mm, 90 mm and 100 mm blade length and available in 4, 5, 6, 8, 10 and 12 holes
The angle between blade and shaft is 130 Degree in Plate.
Holes in plates are used for 4.5 mm Cortical Screws.
4.5 mm Cortical Screws are available in a wide range of length with 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 34, 36, 38, 40, 42, 44, 46, 48, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95 and 100 mm. Any extra Screws length will be made on order.
The number of screw holes per plate length is maximized, without compromising plate strength. This allows an increased number of fixation points with a smaller incision.
General Instruments are available for Condylar Plate such as Plate Bending Press, Plate Holding Forceps, Plate Bending Pliers, Bone Holding Forceps, Bone Elevators, Bone Cutter, Bone Nibbler, Depth Gauge, Sleeve, Screw Driver, Trocar Sleeve etc.
