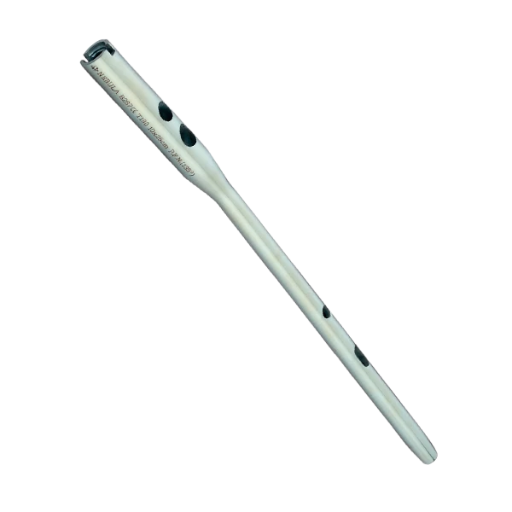

PFN Nail (Proximal Femoral Nail)
PFN Short Indications: The short femoral nail is used for small stature.
Pertrochanteric fractures
Intertrochanteric fractures
High subtrochanteric fractures
PFN Short Contraindications
Low subtrochanteric fractures
Femoral shaft fractures
Isolated or combined medial femoral neck fractures
PFN Long Indications
Low and extended subtrochanteric fractures
Ipsilateral trochanteric fractures
Combination of fractures (trochanteric area / shaft)
Pathological fractures
PFN Long Contraindications
Isolated or combined medial femoral neck fractures
Rotational stability: Combining a hip pin which provides rotational stability with a load-bearing femoral neck screw ensures intra- and postoperative safety.
Insertion safety stop: The screw shoulder prevents the femoral neck screw from undesired slippage through the nail into the femoral neck.
An anatomical angle of 6° allows the nail to be inserted and positioned in the medullary canal with ease.
PFN Nail (Proximal Femoral Nail) diameters of 9, 10, 11 and 12 mm permit insertion without reaming allowing a simplified, time saving surgical procedure with less blood loss.
A choice of static or dynamic interlocking. The distal interlocking slot makes primary or secondary axial dynamization possible.
The nail’s distal flexibility and optimal distance between the interlocking bolt and the tip of the nail minimize stress concentration and tension in the femoral shaft.
PFN Nail (Proximal Femoral Nail) Sizes
PFN Nail (Proximal Femoral Nail) Short sizes: Distal diameter 9-13 mm, Angle 130° or 135°, Length from 180 to 240 mm. Available in both stainless Steel and Titanium.
PFN Nail (Proximal Femoral Nail) Long sizes: Distal diameter 9-13 mm, Angle 130° or 135°, Length from 300 to 420 mm. Available in both stainless Steel and Titanium. Proximal Femoral Nail available for both Left and Right.
4.9 mm Locking Bolt Sizes: Length from 22 to 100 mm in both stainless Steel and Titanium.
6.4 mm Bolt Sizes: Length from 55 to 130 mm in both stainless Steel and Titanium.
8 mm Bolt Sizes: Length from 70 to 120 mm in both stainless Steel and Titanium.
